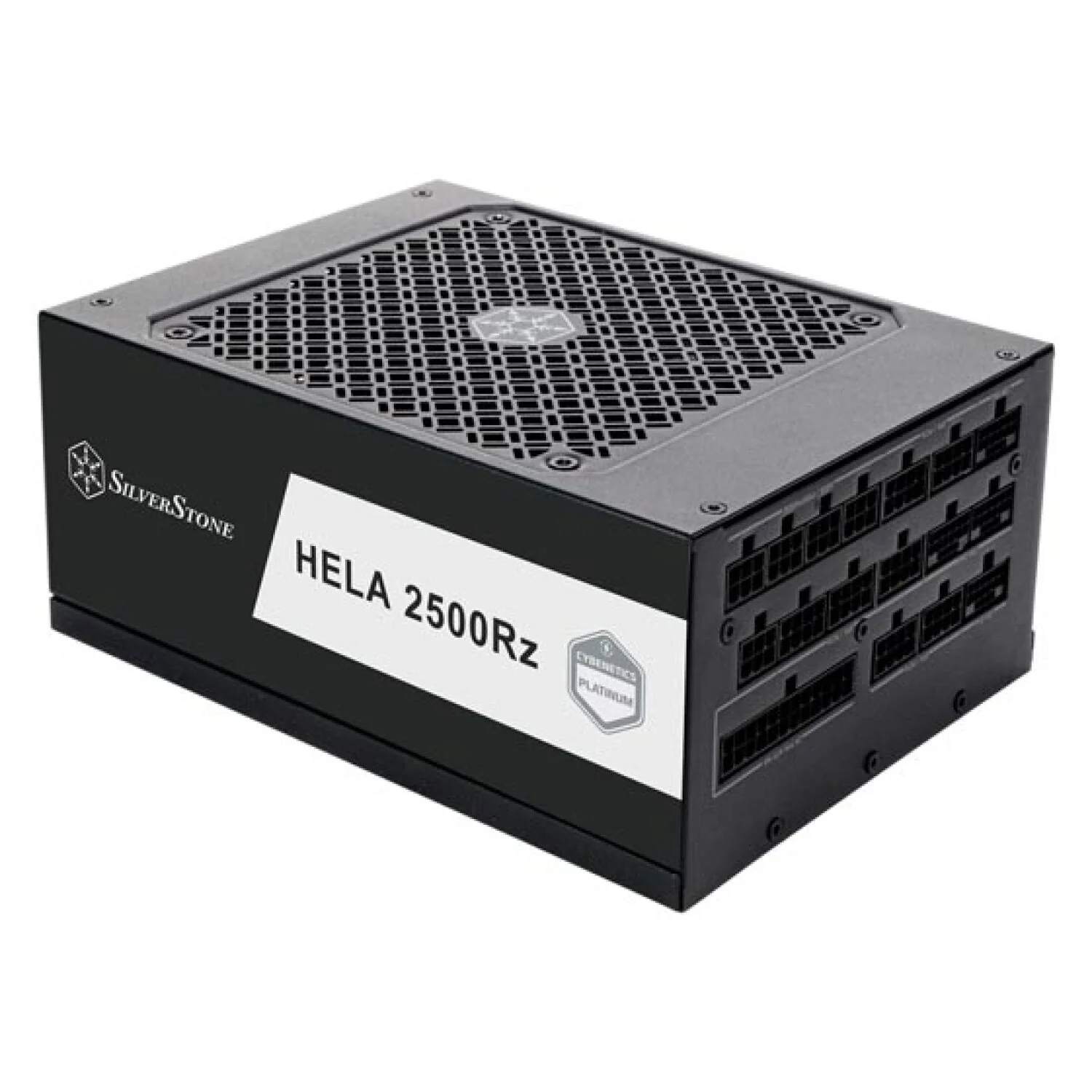

Silverstone HA2500R-PM HELA 2500Rz Cybernetics Platinum Fully Modular ATX Power Supply
General Information
Manufacturer
SilverStone
Part Number
HA2500R-PM
Product Type
Power Supply
California Residents
Proposition 65 Warning
Specifications
Color
Black
Material
Plastic
Length
7.8" (200 mm)
Width
5.91" (150 mm)
Height
3.39" (86 mm)
Weight
4.99 kg
11.00 lb
Miscellaneous
Features
Max. DC Output: 2500W
Power Density: 969 W/L
Combined +3.3V & +5V: 120W
Combined +12V: 2500W
Input Voltage:
2500W: 200 ~ 240 Vrms
1650W: 103 ~ 264 Vrms
1350W: 90 ~ 264 Vrms
Input Frequency Range: 47Hz ~ 63Hz
PFC: Active PFC（PF>0.9 at Full Load)
Efficiency: ≥89% & <91% Overall Efficiency
MTBF: 100,000 hours
Operating Temperature: 0°C ~ 50°C
Noise Level: 18 dBA Minimum
Cooling System: 135 mm Dual Ball Bearing Fan
Certification: Cybernetics Platinum
Form Factor: ATX (PS2)
Connectors:
1 x 24 Pin Motherboard Connector
4 x 8 / 4-Pin EPS / ATX 12V Connect
7 x 8 / 6-Pin PCIe Connectors
4 x 12+4-Pin 12V-2x6 Connector
12 x SATA Connector
4 x 4-Pin Peripheral Connector
Protection:
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Load Range:

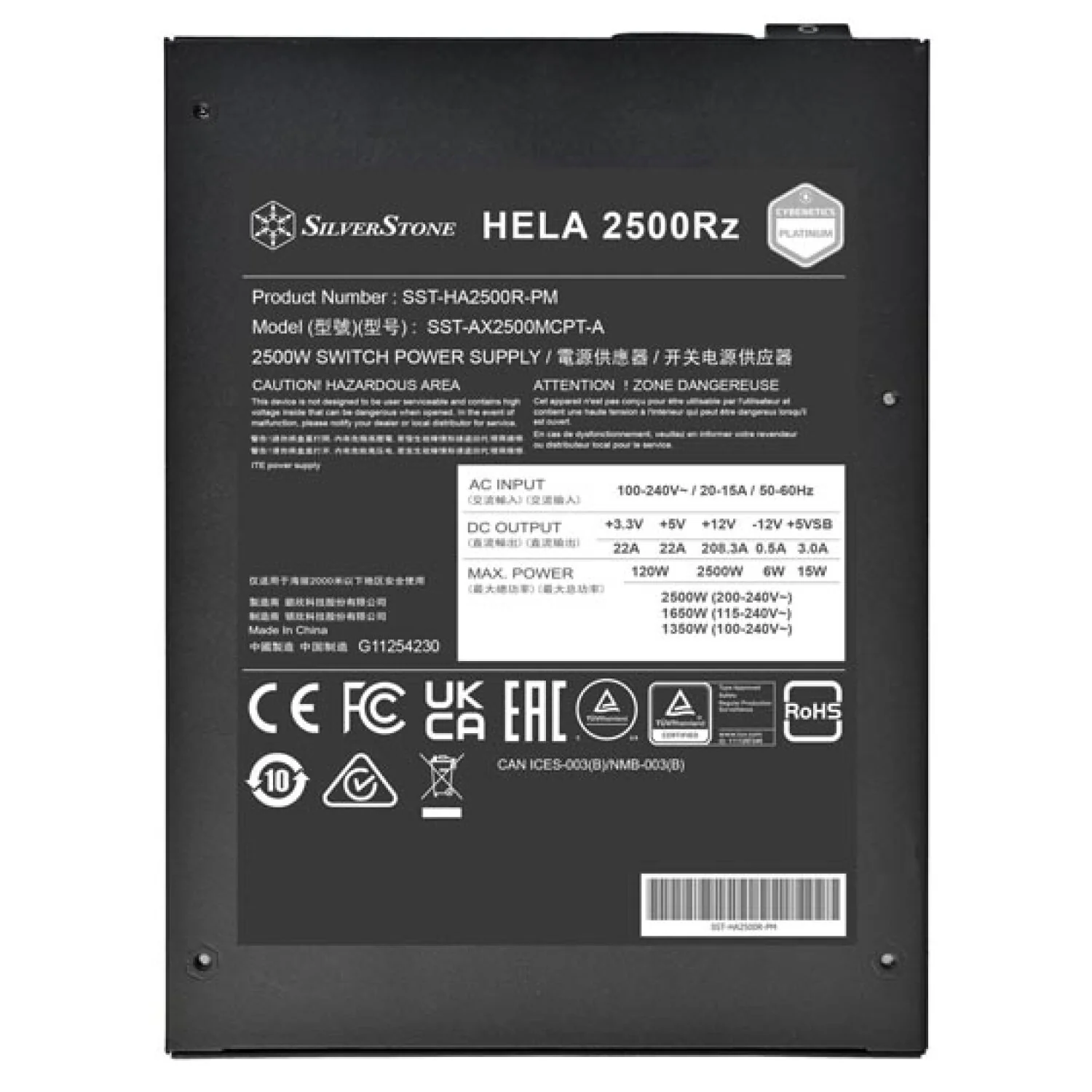

Output: +3.3V +5V +12V +5VSB -12V
Max.(Amps): 22A 22A 208.3A 3.0A 0.5A
Peak (Amps): / / / / /
Min.(Amps): 0A 0A 0A 0A 0A
Range (%): ±3% ±3% ±3 ±3% ±10%
Line Reg.(%): ±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p): 30mV 30mV 50mV 30mV 50mV
Power Density: 969 W/L
Combined +3.3V & +5V: 120W
Combined +12V: 2500W
Input Voltage:
2500W: 200 ~ 240 Vrms
1650W: 103 ~ 264 Vrms
1350W: 90 ~ 264 Vrms
Input Frequency Range: 47Hz ~ 63Hz
PFC: Active PFC（PF>0.9 at Full Load)
Efficiency: ≥89% & <91% Overall Efficiency
MTBF: 100,000 hours
Operating Temperature: 0°C ~ 50°C
Noise Level: 18 dBA Minimum
Cooling System: 135 mm Dual Ball Bearing Fan
Certification: Cybernetics Platinum
Form Factor: ATX (PS2)
Connectors:
1 x 24 Pin Motherboard Connector
4 x 8 / 4-Pin EPS / ATX 12V Connect
7 x 8 / 6-Pin PCIe Connectors
4 x 12+4-Pin 12V-2x6 Connector
12 x SATA Connector
4 x 4-Pin Peripheral Connector
Protection:
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Load Range:
Output: +3.3V +5V +12V +5VSB -12V
Max.(Amps): 22A 22A 208.3A 3.0A 0.5A
Peak (Amps): / / / / /
Min.(Amps): 0A 0A 0A 0A 0A
Range (%): ±3% ±3% ±3 ±3% ±10%
Line Reg.(%): ±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p): 30mV 30mV 50mV 30mV 50mV
$262.50
Original: $749.99
-65%Silverstone HA2500R-PM HELA 2500Rz Cybernetics Platinum Fully Modular ATX Power Supply—
$749.99
$262.50More Images
